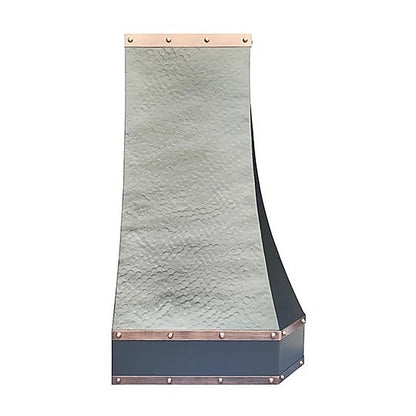

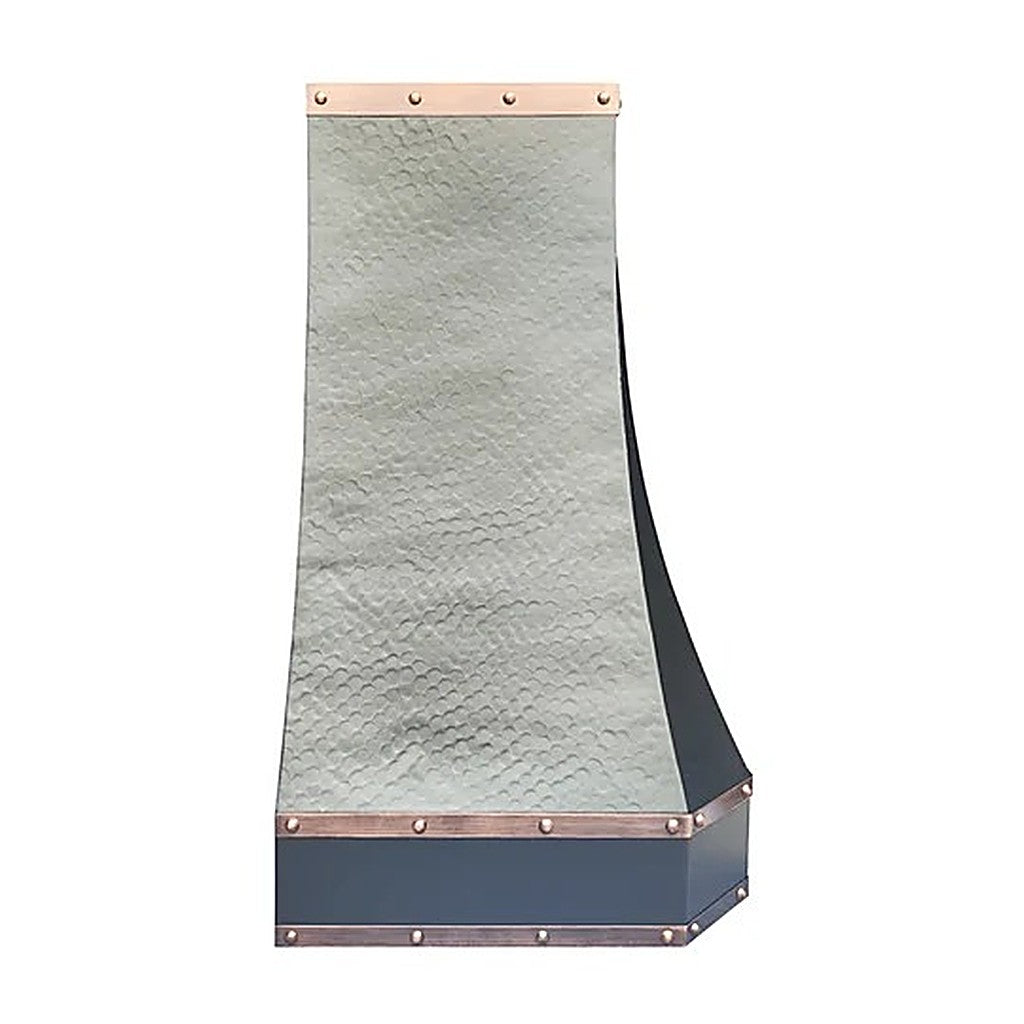

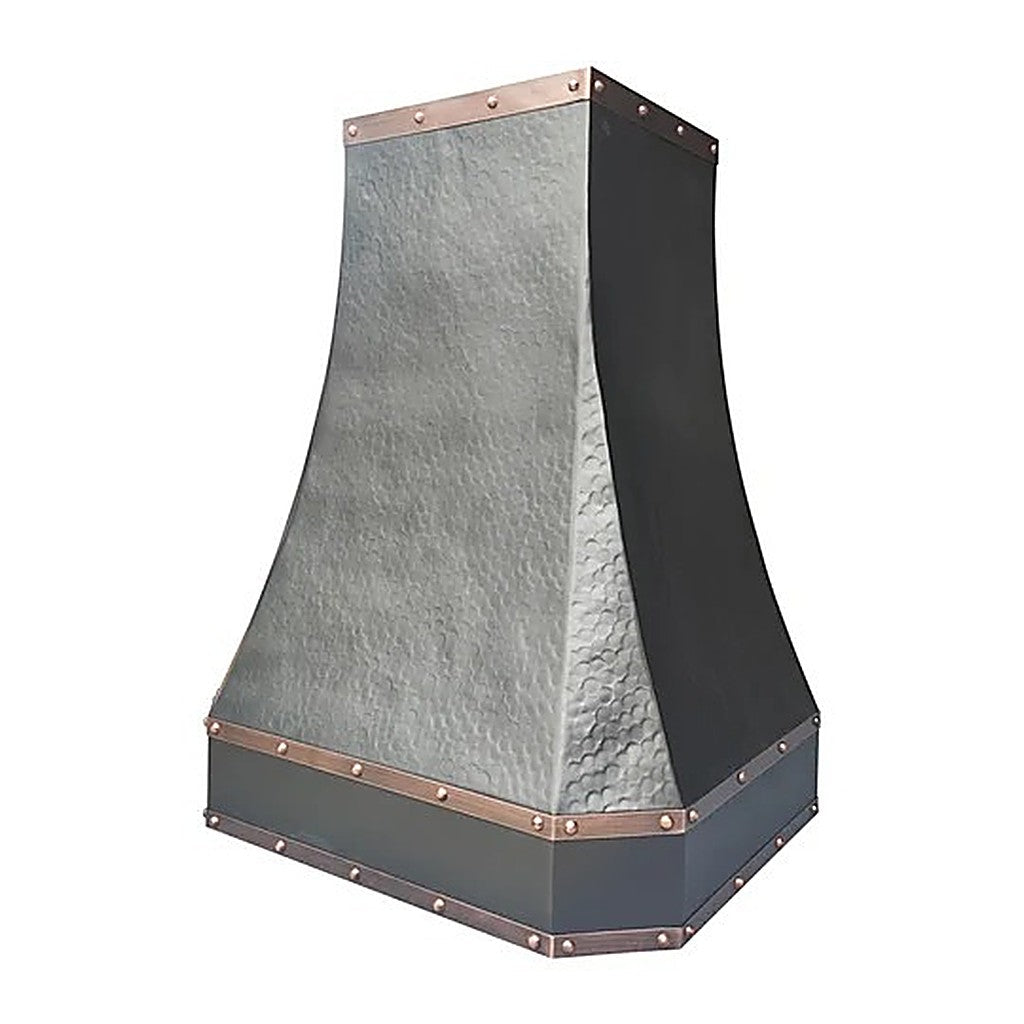

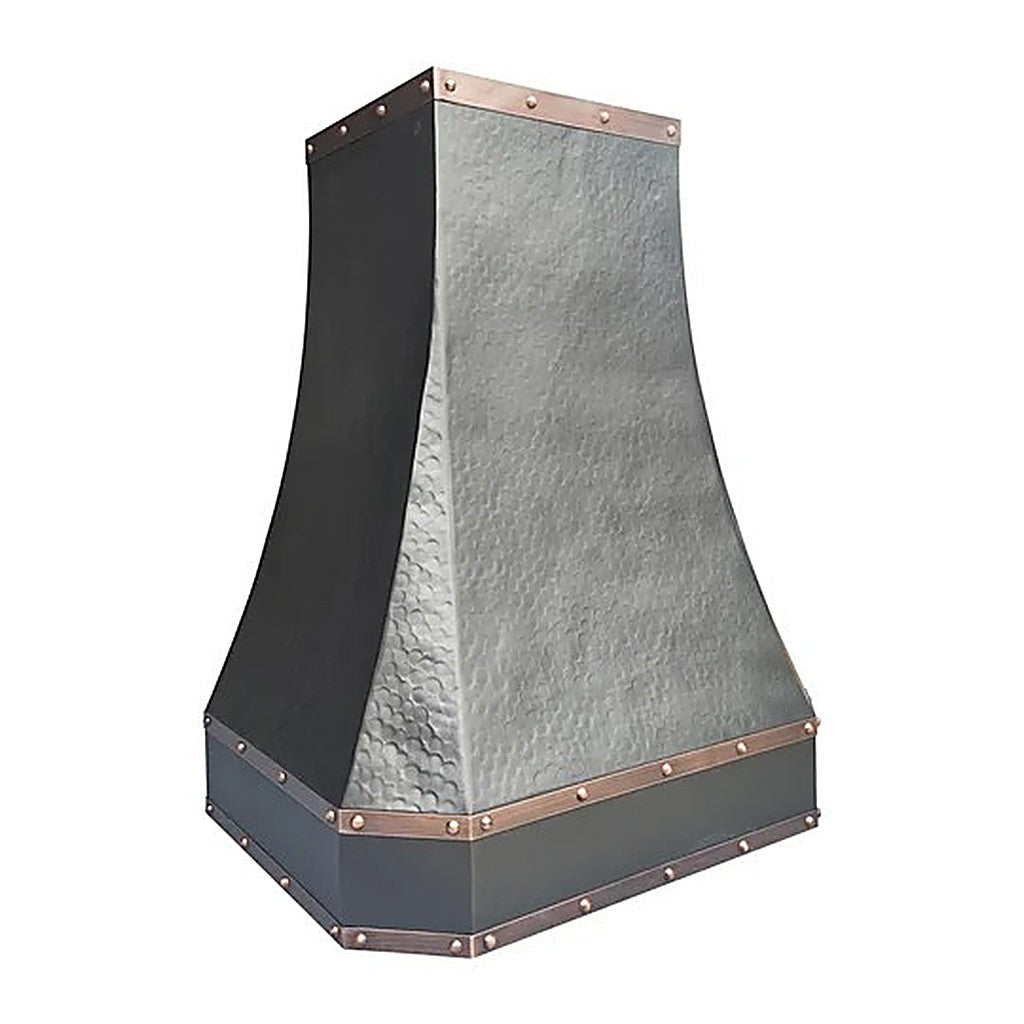

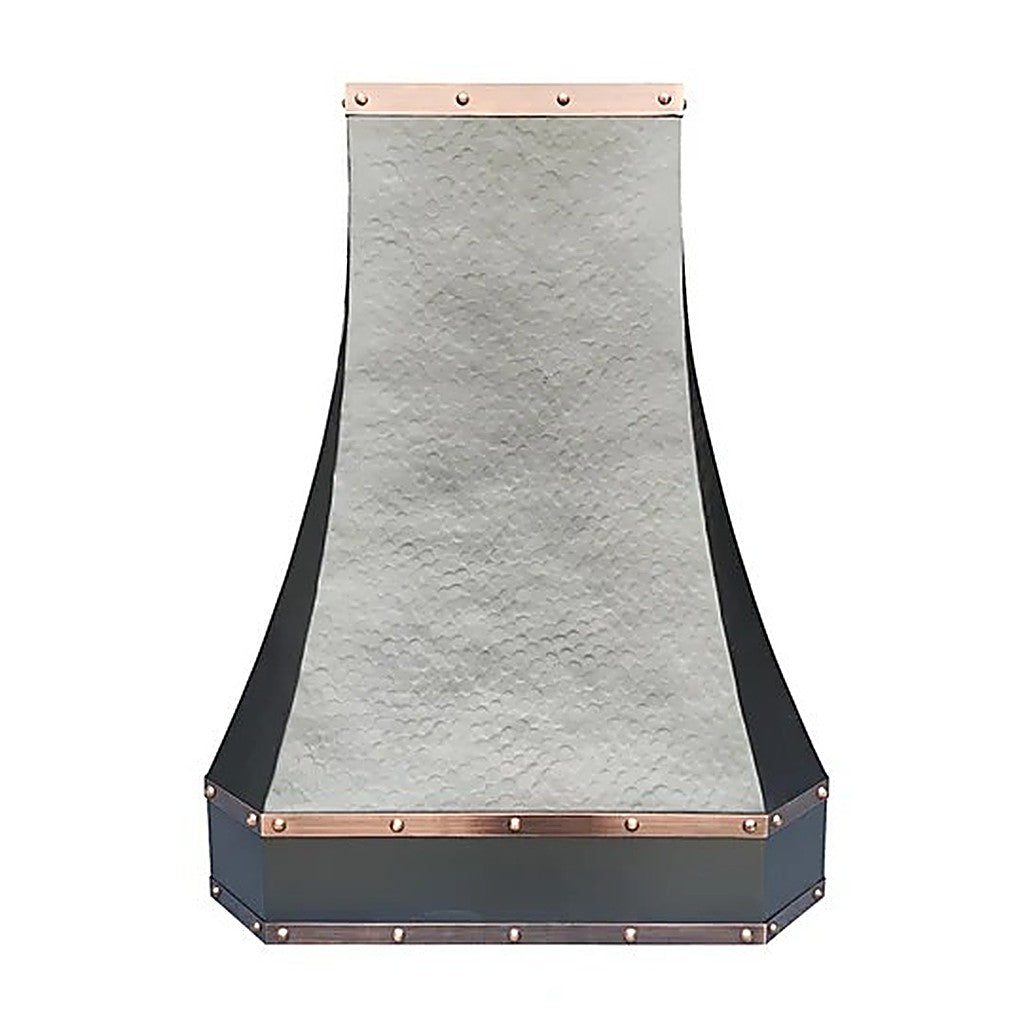

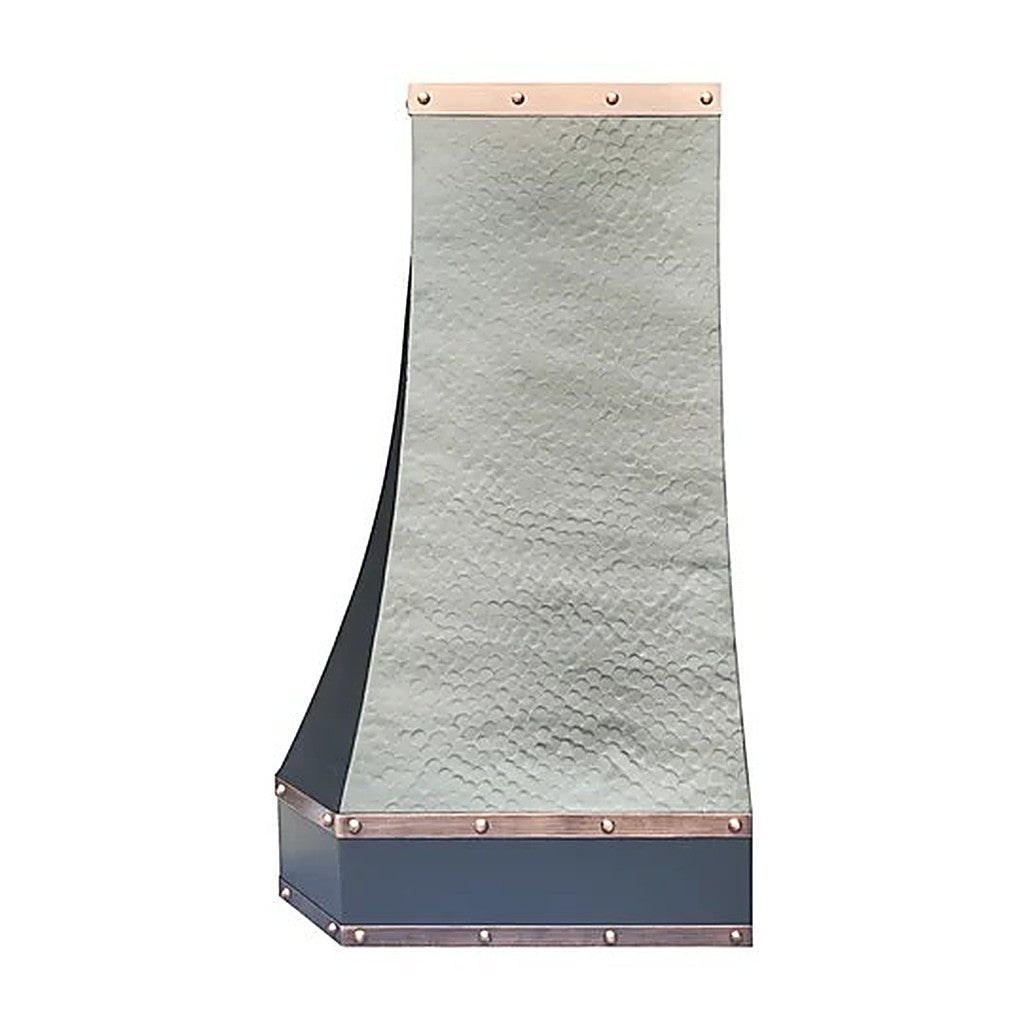

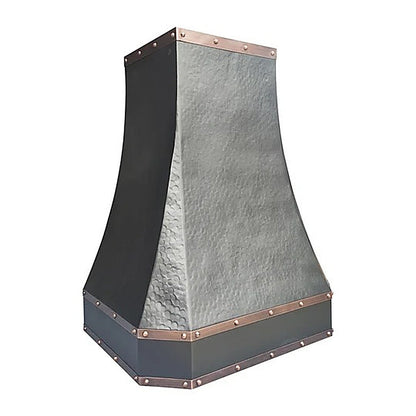

Classic Curved Hammered Copper Range Hood PC3-R02

The Classic Curved Hammered Copper Range Hood is a handmade copper range hood with a gently curved silhouette and a hand-hammered texture.

Solid copper deepens in tone as it ages, giving the hood more character each year. It suits kitchens where the range wall is meant to be seen.

Sold in three fixed widths and two fixed heights — no configuration required. Full dimensions and duct details are below.

Specifications

• Model: PC3-R02
• Material: Copper, 16-gauge, handmade
• Mount type: Wall mount
• Widths: 36" · 42" · 48"
• Heights: 30" (sized for 8 ft ceilings) · 39" (sized for 9 ft ceilings)
• Depth: 22"
• Duct outlet: 8" round
• Recommended airflow: 600 CFM at 36" · 900 CFM at 42" and 48"
• Power: 120V plug-in; hardwire conversion by a licensed electrician
• Warranty: Lifetime on the hood shell · 2 years on the liner/insert · 5 years on the motor

Ventilation sold separately

This is the hood shell. It does not include a motor, blower, liner or filters. Every shell ships prepped for a standard 8" round liner insert. Add the matching kit to your order:

• Ducted Ventilation Insert & Blower — vents outside. The better performer wherever an exterior duct run is possible.
• Ductless Recirculating Kit — filters and returns air to the room. For condos, retrofits and interior islands with no exterior wall access. A recirculating hood does not satisfy code kitchen-ventilation requirements in most U.S. jurisdictions.

Make-up air: Under IRC M1503.6, most U.S. codes require a make-up air system for any hood rated above 400 CFM. Both ducted kits exceed that threshold. Confirm with your builder before ordering.

Choosing your size

Your hood should sit about six inches wider than your cooktop — three inches of overhang each side.

• 30" range → 36" hood
• 36" range → 42" hood
• 42–48" range → 48" hood

For height: ceiling height − cooktop height − clearance. An 8 ft ceiling with a 36" range and 30" clearance gives a 30" hood; a 9 ft ceiling gives 39".
